Còi, Đèn báo cháy gắn tường VF4000-10 | VF4001-10 | VF4002-10

Mô tả

Còi, Đèn báo cháy gắn tường VF4000-10 | VF4001-10 | VF4002-10

Nhà sản xuất: VES
Model: VF4000-10

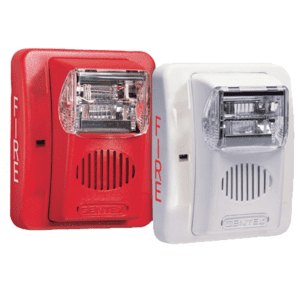

Còi, Đèn báo cháy gắn tường VF4000-10 | VF4001-10 | VF4002-10

Còi, Đèn báo cháy gắn tường VF4000-10 | VF4001-10 | VF4002-10Standard Features
• FM Approved, UL 464, UL 1971 Listed
• Nominal voltage 24VDC
• Units have field selectable candela options
of 15, 30, 60, 75, and 110 candela
• Super-SlideTM Bracket – Ease of Supervision Testing
• CheckmateTM – Instant Voltage Verification
• Unit Dimensions: 5” high x 4.5” wide x 2.5” deep
• Synchronize strobe and/or horn with
VES Series Control Module
• Prewire entire system, then install signals
• Lower installation and operating costs
• Input terminals 12 to 18 AWG
• Switch selection for high or low dBA
• Switch for chime, whoop, mechanical and 2400Hz tone
• Tamperproof re-entrant grill
• Switch for continuous or temporal 3
(not available on whoop tone)
• Surface mount with the VF4005 (VES Surface Mount Box)
• Silence horn while strobes remain flashing
• Wide voltage range 16-33VDC or FWR

Ordering Codes

Part No.
Description
Reverberant dBA
@ 10ft. Per UL 4641
In Anechoic
Room dBA @ 10ft.

VF4000-10
24V Low Profile Evacuation Horn
Red Faceplate
62-82
100

VF4000-30
24V Low Profile Evacuation Horn
Off-White Faceplate
62-82
100

VF4001-10
24V Selectable Candela Low Profile Evacuation Strobe – Wall Mount, Red Faceplate
62-82
100

VF4001-30
24V Selectable Candela Low Profile Evacuation Strobe – Wall Mount, Off-White Faceplate
62-82
100

VF4002-10
24V Selectable Candela Low Profile Evacuation Horn/ Strobe – Wall Mount, Redn Faceplate
62-82
100

VF4002-30
24V Selectable Candela Low Profile Evacuation Horn/ Strobe – Wall Mount, Off White Faceplate
62-82
100

VF4000/ VF4001/VF4002 Product Strobe Current Ratings

Candela
15cd
30cd
60cd
75cd
110cd

24 VDC
30 mA
35 mA
66 mA
80 mA
103 mA

UL Max1
42 mA
60 mA
97 mA
116 mA
157 mA

Horn
Mode
Minimum dBA @ 10ft.
per UL464 (HIGH)
Reverberant dBA @ 10ft per UL464 (LOW)
Regulated 24VDC
Max. Operating
@ High Setting (mA)

Temp 3 2400Hz
78
71*
28

Temp 3 Mechanical
76
70*
25

Temp 3 Chime
70*
66*
15

Continuous 2400Hz
81
74*
28

Continuous Mechanical
80
72*
25

Continuous Chime
70*
66*
15

Whoop
82
69*
56

Để tham khảo cách phối hợp còi và đèn trong hệ thống, xem mẫu thiết kế hệ thống báo cháy và chữa cháy.
